Pins

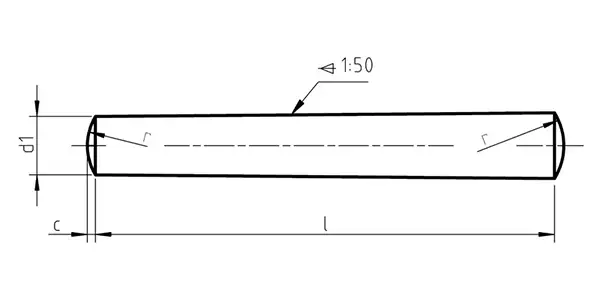

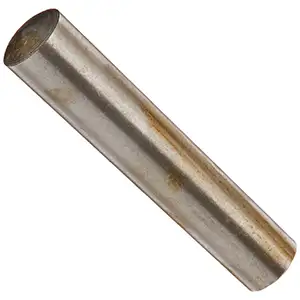

Taper Pins
| Standards | DIN 1 / EN 22339 / ISO 2339 / CSN 022153 / PN 85020 / UNI 7283 / EU 22339 |
|---|---|
| Size Range | 2 to 16 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d1 | c max | r |
|---|---|---|
| 2.00 | 0.30 | 2.00 |
| 3.00 | 0.45 | 3.00 |
| 4.00 | 0.60 | 4.00 |
| 5.00 | 0.75 | 5.00 |
| 6.00 | 0.90 | 6.00 |
| 8.00 | 1.20 | 8.00 |
| 10.00 | 1.50 | 10.00 |
| 12.00 | 1.80 | 12.00 |
| 16.00 | 2.50 | 16.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

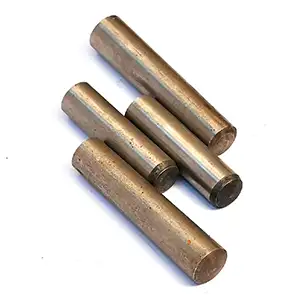

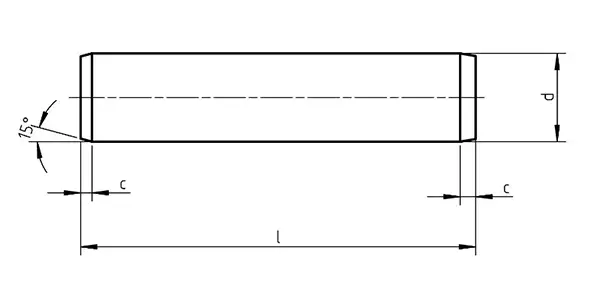

Dowel Pins
| Standards | DIN 7 /EN ISO 2338 / ISO 2338 / CSN 022150 / PN 85021 / UNI 1707 |
|---|---|
| Size Range | 1 to 20 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d m6 | r | c | Tol. m6 (l=2-10mm) | Tol. m6 (l=12-32mm) | Tol. h6 (l=2-10mm) | Tol. h6 (l=12-32mm) |
|---|---|---|---|---|---|---|
| 1.00 | 1.00 | 0.15 | 0.30 | 0.50 | 0.50 | 1.00 |
| 1.20 | 1.20 | 0.18 | 0.30 | 0.50 | 0.50 | 1.00 |
| 1.50 | 1.60 | 0.23 | 0.30 | 0.50 | 0.50 | 1.00 |
| 2.00 | 2.00 | 0.30 | 0.30 | 0.50 | 0.50 | 1.00 |
| 2.50 | 2.50 | 0.40 | 0.30 | 0.50 | 0.50 | 1.00 |
| 3.00 | 3.00 | 0.45 | 0.30 | 0.50 | 0.50 | 1.00 |
| 4.00 | 4.00 | 0.60 | 0.30 | 0.50 | 0.50 | 1.00 |
| 5.00 | 5.00 | 0.75 | 0.30 | 0.50 | 0.50 | 1.00 |
| 6.00 | 6.00 | 0.90 | 0.30 | 0.50 | 0.50 | 1.00 |
| 8.00 | 8.00 | 1.20 | 0.30 | 0.50 | 0.50 | 1.00 |
| 10.00 | 10.00 | 1.50 | 0.30 | 0.50 | 0.50 | 1.00 |
| 12.00 | 12.00 | 1.80 | 0.30 | 0.50 | 0.50 | 1.00 |
| 16.00 | 16.00 | 2.50 | 0.30 | 0.50 | 0.50 | 1.00 |
| 20.00 | 20.00 | 3.00 | 0.30 | 0.50 | 0.50 | 1.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

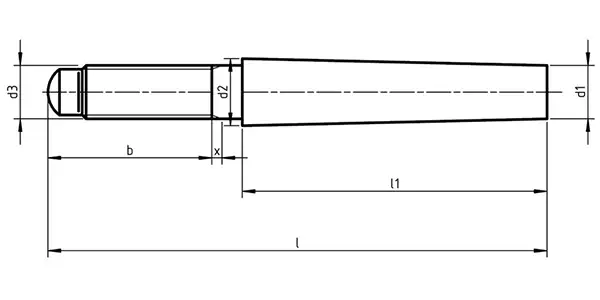

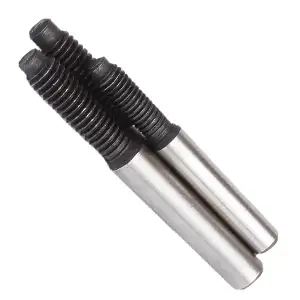

Taper Pins With External Thread
| Standards | DIN 258 / ISO 8737 / CSN 022154 / EU 28738 |
|---|---|
| Size Range | 5 to 20 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d2 | d3 | b | L2 | |
|---|---|---|---|---|
| 5 | 5.50 | M5 | 14.00 | 25.00 |
| 6 | 6.60 | M6 | 18.00 | 30.00 |
| 8 | 8.80 | M8 | 22.00 | 40.00 |
| 10 | 10.90 | M10 | 24.00 | 45.00 |
| 12 | 13.10 | M12 | 27.00 | 55.00 |
| 16 | 17.40 | M16 | 35.00 | 72.00 |
| 20 | 21.70 | M16 | 35.00 | 85.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

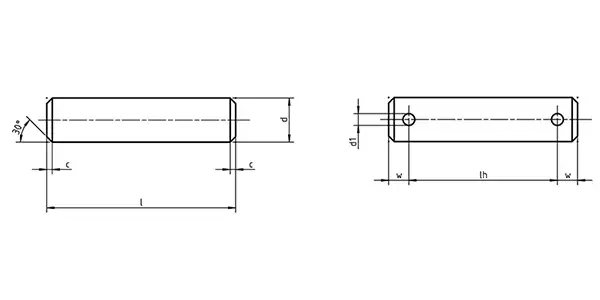

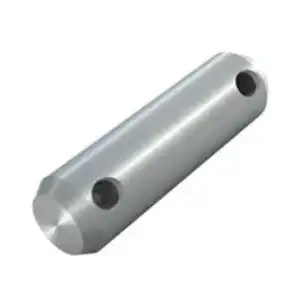

Clevis Pins Without Head
| Standards | DIN 1443 / EN 22340 / ISO 2340 / CSN 022107 / PN 83001 |
|---|---|
| Size Range | 4 to 90 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d h11 | d1 H13 | c max. | w |
|---|---|---|---|
| 4 | 1.00 | 1.00 | 2.20 |
| 5 | 1.20 | 2.00 | 2.90 |
| 6 | 1.60 | 2.00 | 3.20 |
| 8 | 2.00 | 2.00 | 3.50 |
| 10 | 3.20 | 2.00 | 4.50 |
| 12 | 3.20 | 33.00 | 5.50 |
| 14 | 4.00 | 3.00 | 6.00 |
| 16 | 4.00 | 3.00 | 6.00 |
| 18 | 5.00 | 3.00 | 7.00 |
| 20 | 5.00 | 4.00 | 8.00 |
| 22 | 5.00 | 4.00 | 8.00 |
| 24 | 6.30 | 4.00 | 9.00 |
| 27 | 6.30 | 4.00 | 9.00 |
| 30 | 8.00 | 4.00 | 10.00 |
| 33 | 8.00 | 4.00 | 10.00 |
| 36 | 8.00 | 4.00 | 10.00 |
| 40 | 8.00 | 4.00 | 10.00 |
| 45 | 10.00 | 4.00 | 12.00 |
| 50 | 10.00 | 4.00 | 12.00 |
| 55 | 10.00 | 6.00 | 14.00 |
| 60 | 10.00 | 6.00 | 14.00 |
| 70 | 13.00 | 6.00 | 16.00 |
| 80 | 13.00 | 6.00 | 16.00 |
| 90 | 13.00 | 6.00 | 16.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

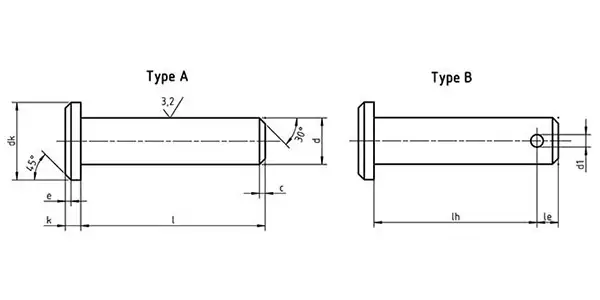

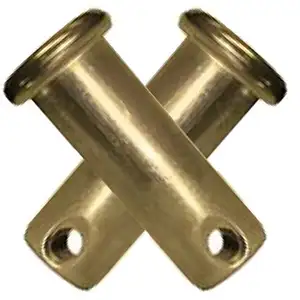

Clevis Pins With Head
| Standards | DIN 1444 / DN 22341 / ISO 2341 / CSN 022111 / PN 83002 |
|---|---|
| Size Range | 4 to 24 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d h11 | dk h14 | d1 H13 | c max. | e | k js14 | le min. | r |
|---|---|---|---|---|---|---|---|
| 4 | 6 | 1.00 | 1.00 | 0.50 | 1.00 | 2.20 | 0.60 |
| 5 | 8 | 1.20 | 2.00 | 1.00 | 1.60 | 2.90 | 0.60 |
| 6 | 10 | 1.60 | 2.00 | 1.00 | 2.00 | 3.20 | 0.60 |
| 8 | 14 | 2.00 | 2.00 | 1.00 | 3.00 | 3.50 | 0.60 |
| 10 | 18 | 3.20 | 2.00 | 1.00 | 4.00 | 4.50 | 0.60 |
| 12 | 20 | 3.20 | 3.00 | 1.60 | 4.00 | 5.50 | 0.60 |
| 14 | 22 | 4.00 | 3.00 | 1.60 | 4.00 | 6.00 | 0.60 |
| 16 | 25 | 4.00 | 3.00 | 1.60 | 4.50 | 6.00 | 0.60 |
| 18 | 28 | 5.00 | 3.00 | 1.60 | 5.00 | 7.00 | 1.00 |
| 20 | 30 | 5.00 | 4.00 | 2.00 | 5.00 | 8.00 | 1.00 |
| 22 | 33 | 5.00 | 4.00 | 2.00 | 5.50 | 8.00 | 1.00 |
| 24 | 36 | 6.30 | 4.00 | 2.00 | 6.00 | 9.00 | 1.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

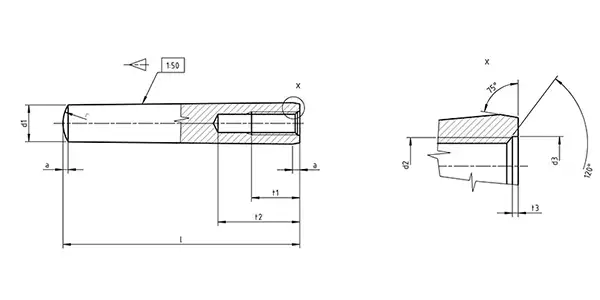

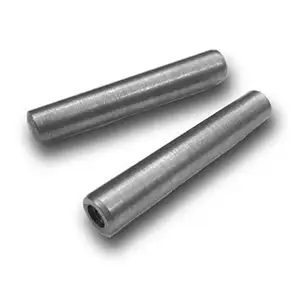

Taper Pins With Internal Thread
| Standards | DIN 7978 / EN 28736 / ISO 8736 / CSN 022155 / PN 85019 / UNI 7284 / EU 28736 |
|---|---|
| Size Range | 8 to 20 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d | d2 | t | f |
|---|---|---|---|
| 6 | M4 | 6.00 | 0.80 |
| 8 | M5 | 8.00 | 1.00 |
| 10 | M6 | 10.00 | 1.20 |
| 12 | M8 | 12.00 | 1.60 |
| 14 | M8 | 12.00 | 1.60 |
| 16 | M10 | 16.00 | 2.00 |
| 20 | M12 | 18.00 | 2.50 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified

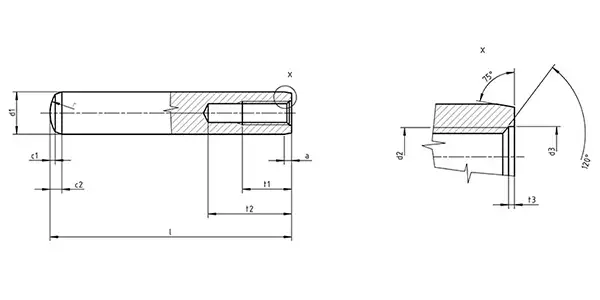

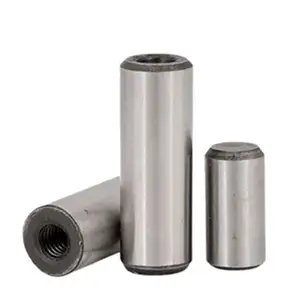

Parallel Pins With Internal Thread
| Standards | DIN 7979 / EN 28733 / ISO 8735 / CSN 022151 / PN 85018 / UNI 6364 |
|---|---|
| Size Range | 6 to 20 |
| Materials | Brass, Mild Steel, Stainless Steel |
| Surface Treatment | Zinc, Cadmium, Nickel, Galvanize, Chrome |
Hover on Image to EnlargeNOTE: This product can also be provided in special dimensions and features as per requirement
| d m6 | d2 | f1 | f2 | t |
|---|---|---|---|---|
| 6 | M4 | 2.10 | 0.80 | 6.00 |
| 8 | M5 | 2.60 | 1.00 | 8.00 |
| 10 | M6 | 3.00 | 1.20 | 10.00 |
| 12 | M6 | 3.80 | 1.60 | 10.00 |
| 14 | M8 | 4.00 | 1.80 | 12.00 |
| 16 | M8 | 4.70 | 2.00 | 12.00 |
| 20 | M10 | 6.00 | 2.50 | 16.00 |
*All Dimensions are for reference only, kindly confirm actual dimension before placing order
*All Dimensions are in Millimeter unless otherwise specified
